Description
“Optimist Creed”

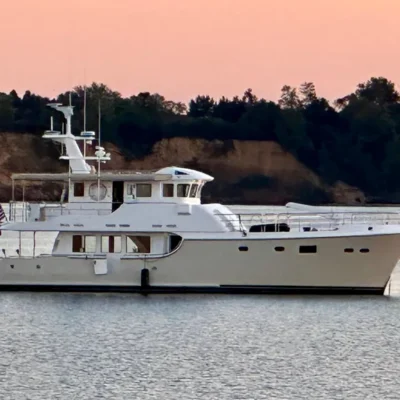

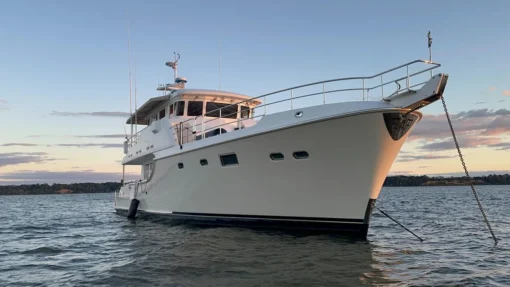

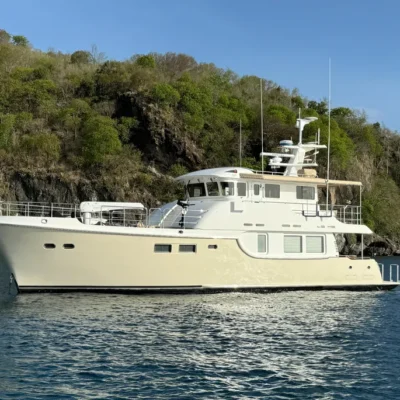

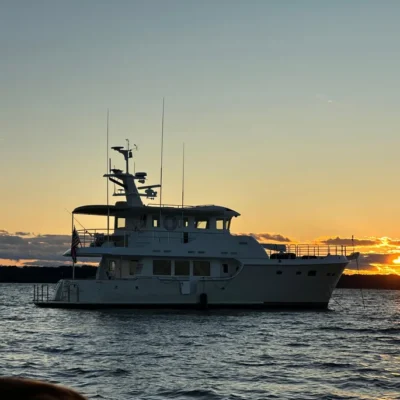

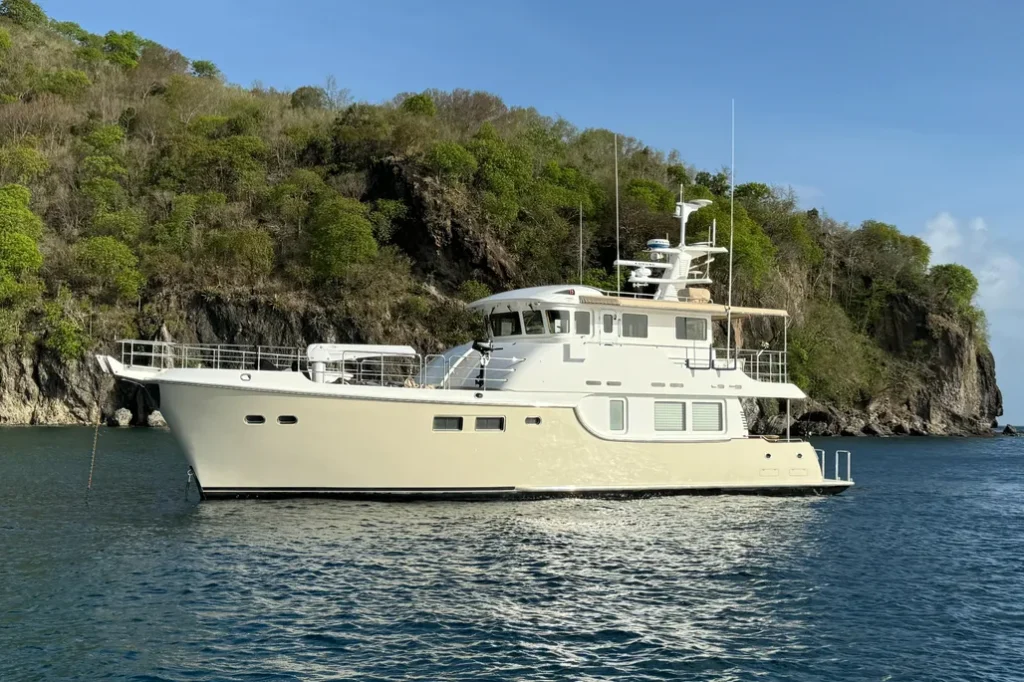

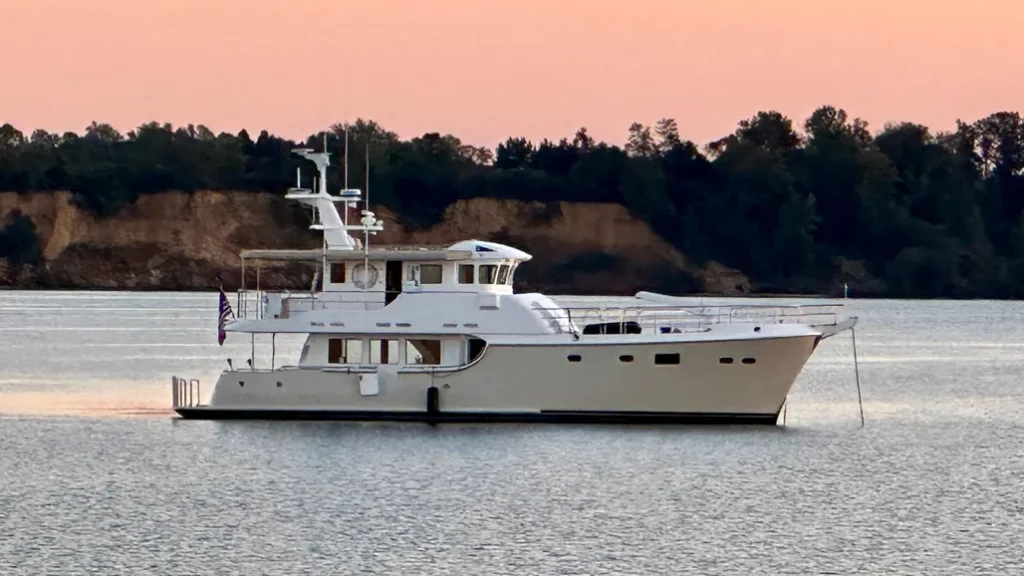

We are excited to once again bring this vessel to the marketplace. This beautiful Nordhavn 63 features gorgeous, rich grained cherry woodwork. She has 3 cabins and 3 “FULL” heads with an extra crew berth in the utility area just forward of the engine room. “Optimist Creed” has a custom aft upper deck seating area and hydraulic Stabilization At Rest (STAR) which provides unmatched stability while at anchor or fishing.

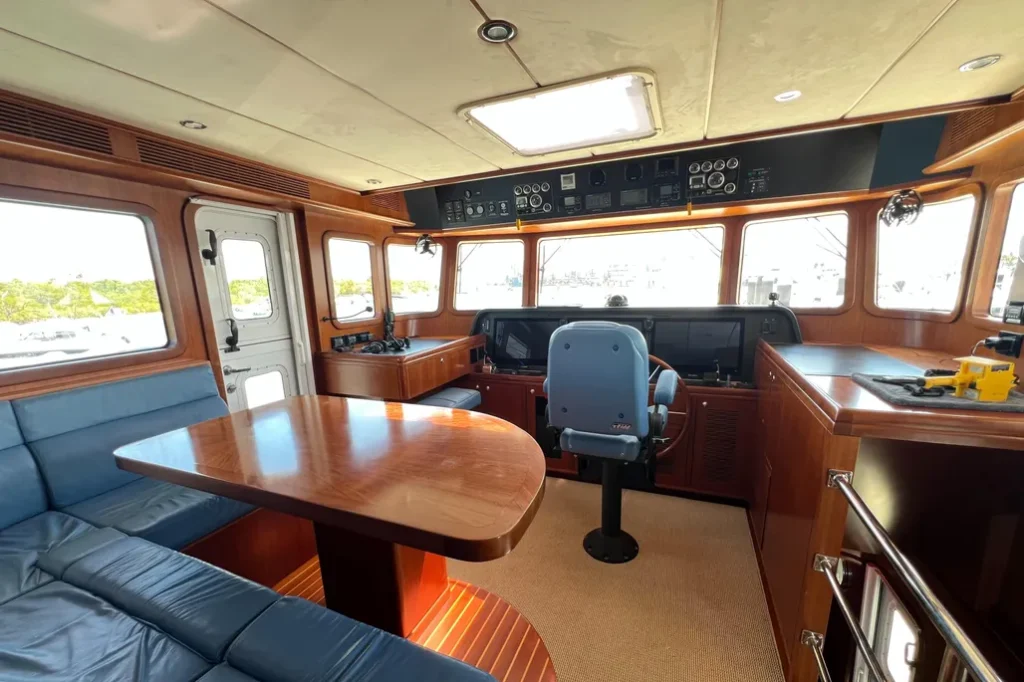

You rarely find details like the custom, oversized pilothouse center window (for a clear view at the helm) on many of these boats and 6309 also has the hydraulic anchor wash option.
Fully US Duty Paid and American flagged, 6309 represents amazing value for money in this new age of extremely high tariffs on foreign and Chinese built yachts. She will undoubtedly retain, if not increase in value as people start to understand what this means for the US Yacht Brokerage market.
Yacht Tech did a full walk-thru video of 6309 a few years ago when she was named BRAVO … see link in pictures section and be prepared to be entertained and amazed by one of the nicest 63’s built.
Please contact us for additional details and to schedule a showing.
Contact Information
Please contact Jay Flaherty at 561-776-5848
Other Details
KEY FEATURES …
- Generator #1: Northern Lights M844LW3.3 – 20kW w/ gen-sep exhaust (~5,962 hrs)
- Generator #2: Northern Lights M773LW3 – 9kW (~6,522 hrs)
- Bow Thruster: Side-Power SP240TCi
- Stern Thruster: Side-Power SP240TCi
- Stabilization: ABT Trac 300 digital stabilizers with TRACStar feature (STabilization At Rest)
- Water Maker: Village Marine “Squirt” STW600 (600 gal/day)

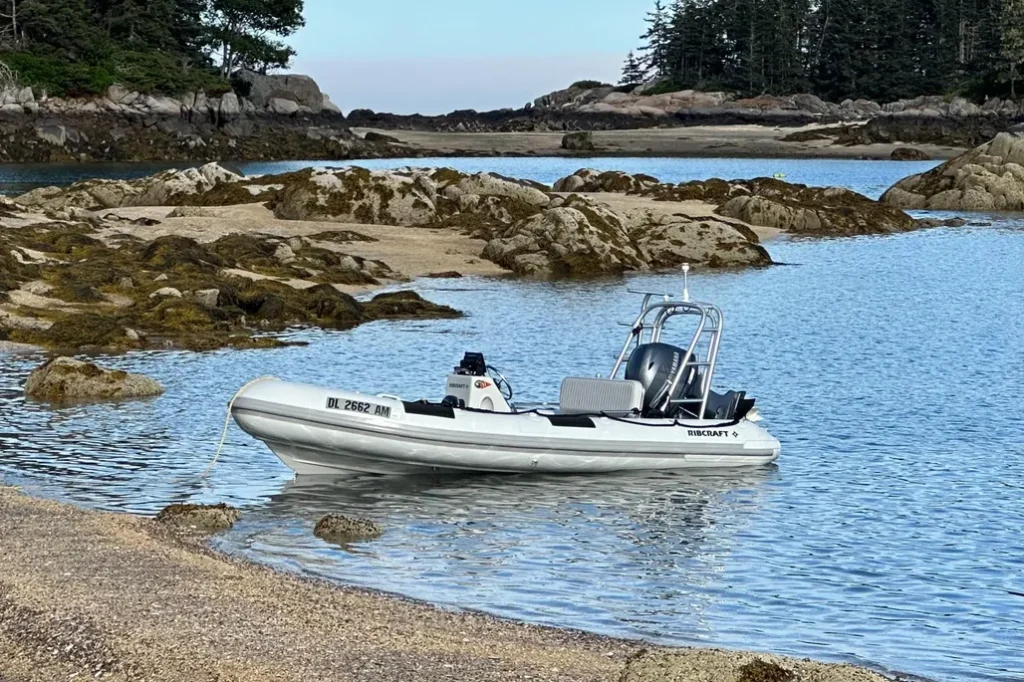

- Tender: 2015 Ribcraft 4.8T w/ 60HP Yamaha four-stroke (F60LB)
PROPULSION …

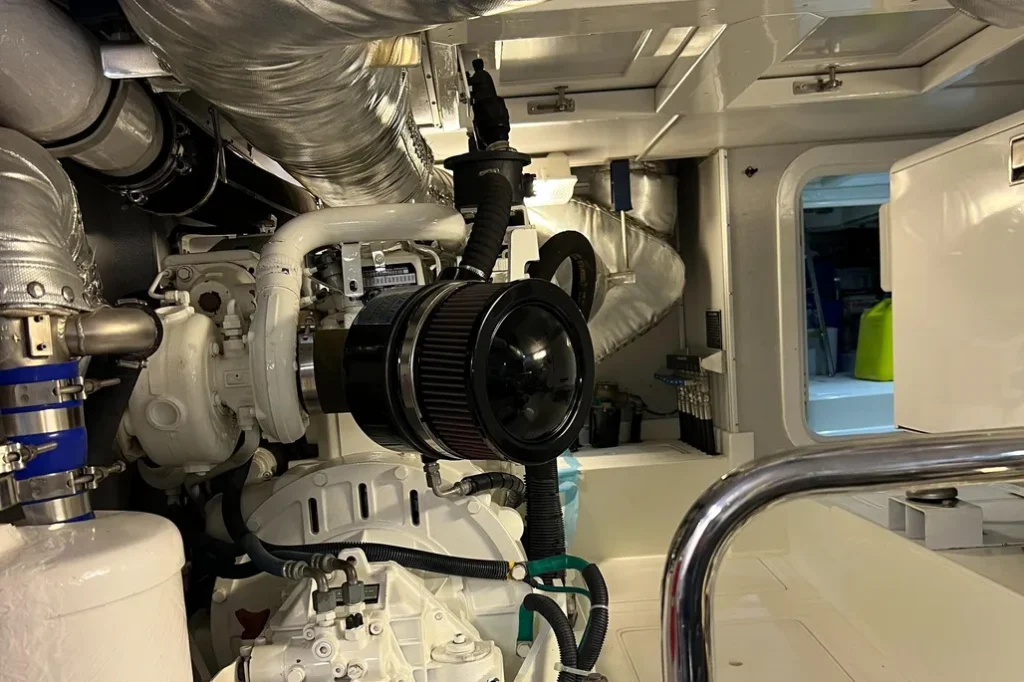

- Main Engine …
- John Deere 6090AFM (~4,663 hrs)
- Dry stack exhaust w/ Fernstrum keel cooler
- ZF W325 transmission
- Aquamet 22 propeller shaft w/ PSS seal & Spurs line cutter
- 5-blade bronze prop
- Mathers Micro Commander controls (pilothouse, starboard wing station)
- PTO for hydraulics
- Wing Engine …
- John Deere 4045DFM (~124 hrs)
- Wet exhaust
- ZF 631V V-Drive transmission
- Aquamet 22 propeller shaft w/ Gori folding prop
- Morse controls
- PTO for hydraulics
GALLEY …
- Cooktop: GE PGP953SETSS 5-burner (propane)
- Oven: GE PK7000SFSS (electric)
- Microwave: GE PVM1790SRSS (convection)
- Refrigeration #1: Sub-Zero 700TCI-3 w/ cherry panel
- Refrigeration #2: Sub-Zero 700TCI-3 w/ cherry panel
- Refirgeration #3: U-Line 75F (utility room)
- Dishwasher: GE 18″ GSM1800NBB w/ cherry panel
- Trash Compactor: GE 15″ ZCGS150RSS w/ cherry panel
- Water Purifier: Seagull IV X-6
- Washer: Asko WM70.1 W6424W (utility room)
- Dryer: Asko TD70.1 T754W (utility room)
ELECTRONICS …
- Navigation #1: Furuno TZT2BB touch screen MFD
- Navigation #2: Furuno TZT2BB touch screen MFD
- Navigation #3: Furuno TZT2BB touch screen MFD
- Radar #1: Furuno DRS Radome
- Radar #2: Furuno DRS open
- Multidata Instrument #1: B&G Triton
- Multidata Instrument #2: B&G Triton
- GPS: Furuno GP-33
- AIS: Furuno FA-150
- Heading Sensor: Furuno PG-700
- Weather Receiver: Furuno BBWX4
- Sounder: Furuno BBDS1
- VHF #1: Icom IC-M506
- VHF #2: Icom IC-M506
- Searchlight: Go Light
- Magnetic Compass: Ritchie
ELECTRICAL …
- Shore (AC) Power …
- Aft: Glendinning Cablemaster
- Forward: Smartplugs
- Ship’s (DC) Power: 24V
- Batteries…
- (2) GPL-8DL (bow thruster)
- (2) GPL-8DL (stern thruster)
- (2) GPL-4DL (main engine start)
- (2) GPL-4DL (wing engine start)
- (2) GPL-31T (generator start)
- (8) GPL-8DL (house)
- (1) GPL-31T (comms)
- Inverter/Charger #1: Outback VFX3524 3,500W
- Inverter/Charger #2: Outback VFX3524 3,500W
- Battery Charger #3: Mastervolt Chargemaster 24/80-3
- Isolation Transformer: Olsun XT
SHIP’S SYSTEMS …
- HVAC …
- CRUISAIR remote compressor system with SMX controls, reverse cycle for heating w/ auxiliary heat strips
- Salon/Galley: 48 BTU compressor w/ (2) 24 BTU air handlers
- Pilothouse: 30 BTU compressor w/ (1) 30 BTU air handler
- Pilothouse Cabin: 10 BTU compressor w/ (1) 10 BTU air handler
- Primary Stateroom: 24 BTU compressor w/ (1)16 BTU & (1)10 BTU air handlers
- Guest stateroom: 12 BTU compressor w/ (1) 12 BTU air handler
- Crew Cabin/Utility Room: 10 BTU compressor w/ (1) 10 BTU air handler
- Auto-Pilot Pump #1: Accu-steer
- Auto-Pilot Pump #2: Accu-steer
- Fuel …
- Day/Supply Tank: 30 gal (Aluminum)
- Port Engine Room Tank: 970 gal (FRP)
- Starboard Engine Room Tank: 970 gal (FRP)
- Port Tank: 180 gal (FRP)
- Starboard Tank: 180 gal (FRP)
- Wing Engine: 28 gal (aluminum)
- Auxiliary: Gasoline tank w/ 24V pump for tender (30 gal)
- Fresh Water
- Tank: 800 gal (FRP)
- Pumps: (2) Headhunter Mach 5
- Accumulator Tank: Groco PST-3A
- Water Heater: Torrid MV-40-2 (40 gal)
- Filtration: Whirlpool WHKF-DWHBB whole house system
- Water Maker: Village Marine “Squirt” STW600 (600 gal/day)
- Gray Water …
- Tank: 110 gal
- Discharge Pump: 24V Sealand TW
- Manual Discharge: Whale Mark V
- Black Water …
- Tank:120 gal
- Discharge Pump: 24V Sealand TW
- Manual Discharge: Whale Mark V
- Oil Transfer System: Hard plumbed to main engine, generators & wing engine
- Windlass: Maxwell VWC3500 24V
- Anchor #1: 110 kg plow w/ 400′ chain rode
- Anchor #2: 69 lb Fortress w/ 30′ chain & 250′ 3-strand rode
- Anchor Wash: Hydraulic
- Davit: Steelhead Marine
- Safety …
- Fire Suppression #1: SeaFire FD1300M (engine room)
- Fire Suppression #2: SeaFire FD1050 (lazarette)
- Life Raft: Switlik 6-person
- EPIRB #1: ACR Global Fix Pro
- EPIRB #2: ACR Global Fix V4
- Search Light: Go Light
EXCLUSIONS …
- Fishing gear
DISCLAIMER …
- The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Propulsion
Engine 1
- Engine Make: John Deere (Main Engine)
- Engine Model: 6090AFM
- Engine Year: 2016
- Engine Hours: 4663
- Engine Type: Inboard
- Drive Type: Direct Drive
- Fuel Type: Diesel
- Rope Cutter:
- Propeller Type: 5 Blade
- Propeller Material: Bronze
Engine 2
- Engine Make: John Deere (Wing Engine)
- Engine Model: 4045JFM
- Engine Year: 2016
- Engine Hours: 124
- Engine Type: Inboard
- Drive Type: V-drive
- Fuel Type: Diesel
- Propeller Type: 3 Blade
- Propeller Material: Bronze
Specifications
Dimensions
- Length Overall: 62.5ft
- Max Draft: 6.67ft
- Beam: 18ft
- Length at Waterline: 57.25ft
Miscellaneous
Hull Material: Fiberglass
Tanks
- Fresh Water Tank: 800 gal
- Holding Tank: 120 gal
- Fuel Tank: 2350 gal
Accommodations
- Guest Cabins: 3
- Guest Heads: 3
- Crew Cabins: 1
