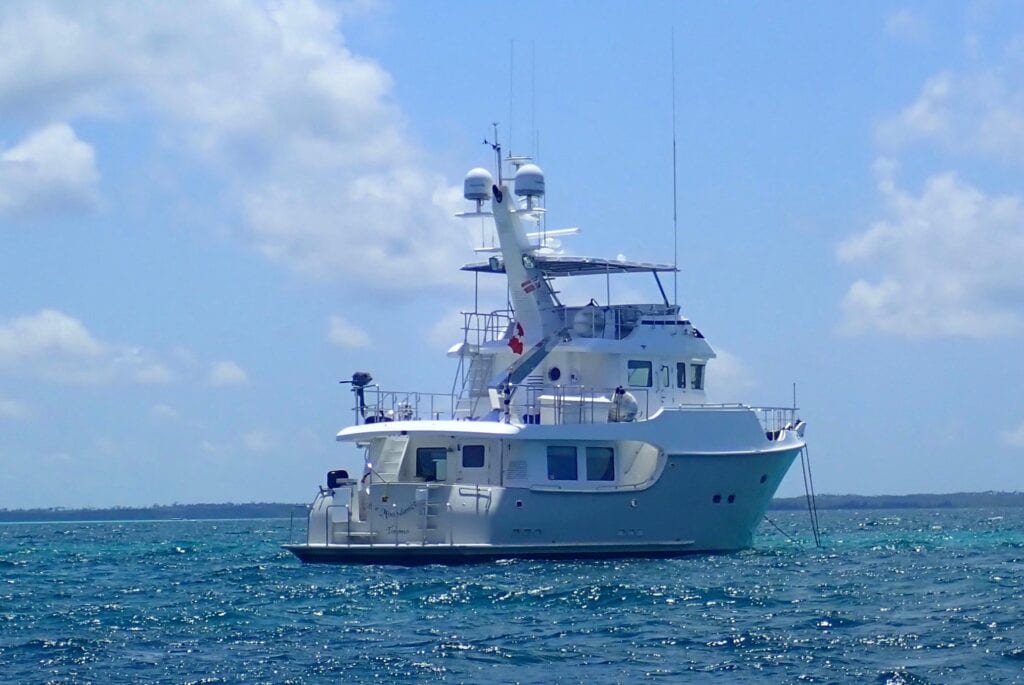

(2006) Nordhavn 55 – One More Moondance

Full Specifications

Boat Name
One More Moondance

Specs

Hull Shape: Displacement

Dimensions
LOA: 56 ft 8 in
Beam: 18 ft 0 in
LWL: 50 ft 1 in
Maximum Draft: 6 ft 4 in
Displacement: 120000 lbs
Ballast: 8500 lbs

Engines
Total Power: 330 HP

Engine 1:
Engine Brand: John Deere

Year Built: 2006
Engine Model: 6081
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Center
Engine Hours: 5983
Drive Type: Direct Drive
Engine Power: 330 HP

Cruising Speed: 8 knots
Maximum Speed: 10 knots

Tanks

Fresh Water Tanks: Fiberglass (600 Gallons)
Fuel Tanks: Fiberglass (2250 Gallons)
Holding Tanks: Fiberglass (120 Gallons)

Accommodations
Number of double berths: 3

Number of cabins: 3
Number of heads: 3

ACCOMMODATIONS

The interior is fitted with beautiful cherry flooring which is protected throughout with a
custom bound carpet. All settees are covered in Ultraleather. Windows in the Salon, Master and Pilothouse staterooms have custom window coverings allowing two levels of light blocking shades. There is LED lighting throughout. Lots of attention to detail during the build process resulted in a beautiful bright interior with a great feel upon stepping on board. Interior headliners have been updated and/or replaced in 2020.

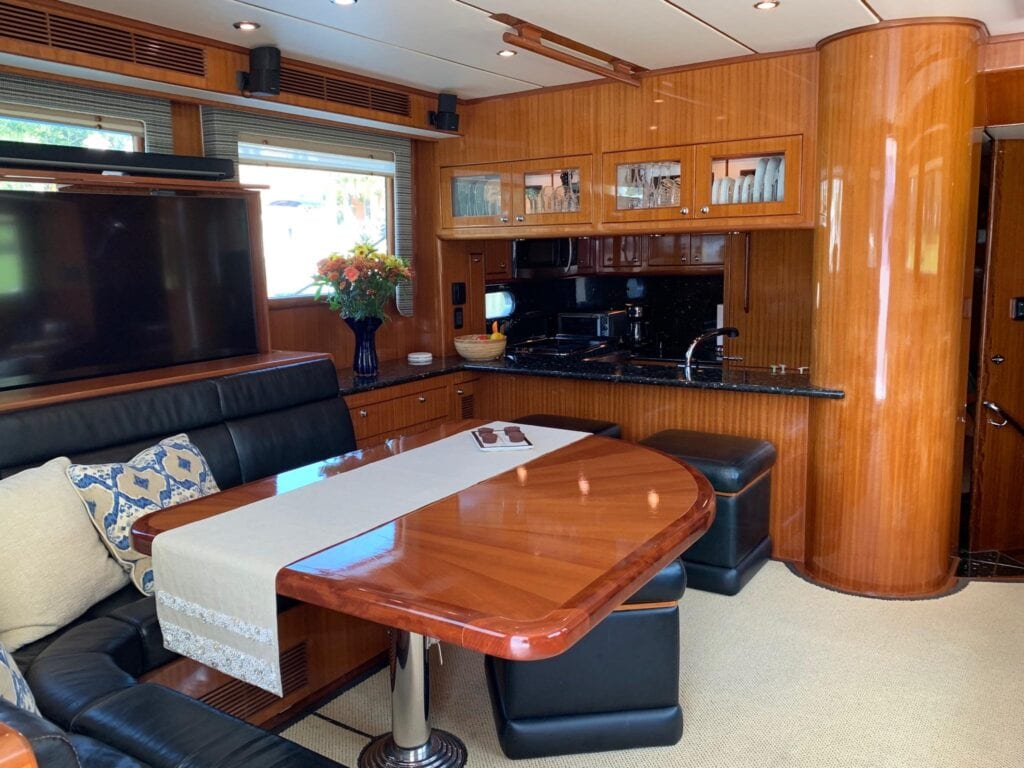

SALON

There is a large L-shaped settee to port with a beautiful cherry dining table featuring a “starburst” wood pattern. There is a full length sofa/settee to starboard which converts into an extra long double bed with filler cushion. There are three custom padded stools  with opening tops for storage and that allow them to convert to a small table. To port, the Samsung 4K flat screen TV is on an Airtex lift behind the settee and is comfortably viewed from the starboard sofa. The SONOS Playbar/Sub surround sound system compliments the entertainment package.

MASTER STATEROOM

The owner’s stateroom is on the same level as the salon and galley, and it is located amidships where the motion is most comfortable during passages and while at anchor. It features an over sized queen, walk around berth, and extra storage underneath. The Master Stateroom has LED lighting, bedside reading lights, and an HCM mattress with custom made bedding. There are custom bookcases on the wall at the foot of the bed, with cabinets below, four extra-large drawers on the forward wall, 4 drawers under the bed and two hanging lockers. This provides more then ample live-aboard storage. The hatch is equipped with “Ocean-View” screens/blinds. In addition to a mirror above the drawers, there is a custom curved-top full length mirror on the wall. The Master head has a full sized tub with shower, upgraded Raritan Vortex head, LED lighting, granite counter tops and backsplash. The floor is black granite with stainless steel inlays.

GUEST STATEROOM/OFFICE

Forward is the spacious guest cabin which is accessed from the starboard side stairway
leading from the pilot house. The center wall is hinged which creates one large cabin or kept in place to keep the desk area as a separate office. The cabin features a double sized berth with an HCM mattress, custom bedding, and a large hanging locker with four over-sized drawers under berth. To starboard there is a desk and another double-wide hanging locker. The hatches are equipped with “Ocean-View” screens/blinds. The private head, with a stall shower, features a granite counter top and back-splash. The floor is also black granite with stainless steel inlays. There is ample storage for toiletries and bathroom linens in the huge mirrored cabinet above the countertop. Below the cabin sole is a hatch and a teak and stainless ladder leading to the huge forward hold area with standing headroom. This area houses the newly overhauled watermaker and fresh water systems. This area also provides access to the bow thruster, and custom shelving.

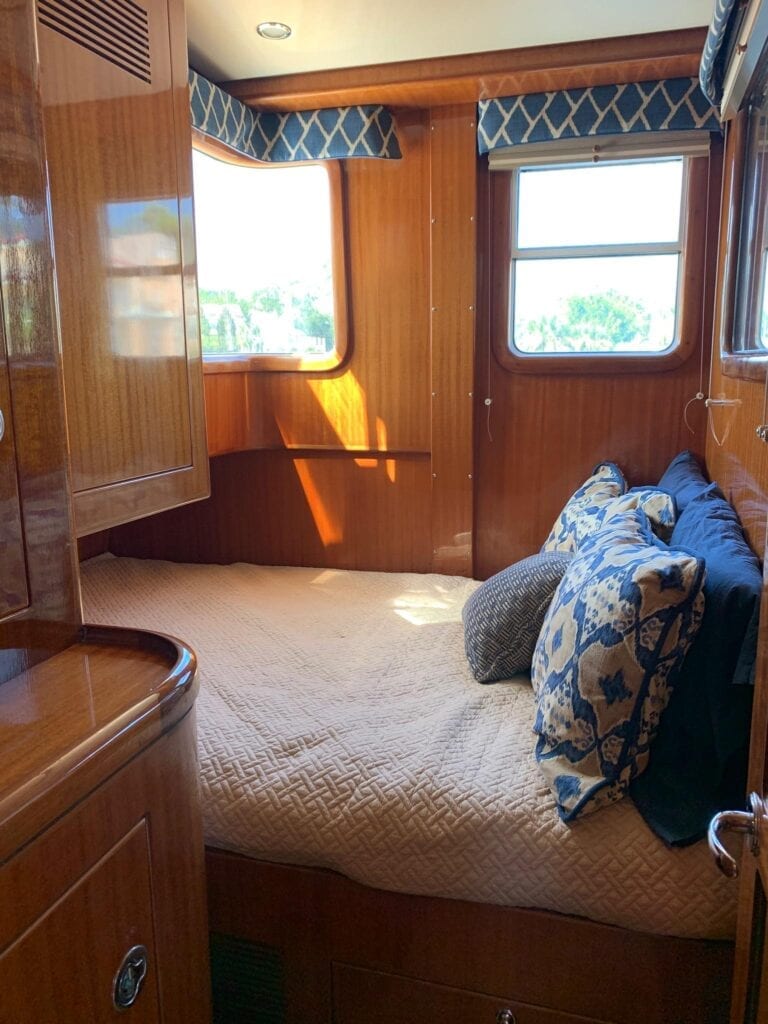

GUEST/ CAPTAIN’S CABIN

Adjacent to the pilothouse is a private stateroom complete with a double-sized berth with an HCM mattress, custom bedding and locker. This cabin is perfect for the off-watch crew to rest comfortably nearby on long passages. In addition to windows facing out, it also features two large windows into the helm area (all with custom window coverings for privacy). The head, appointed with granite, features both an overhead hatch and an opening porthole, and also functions as a day head.

PILOTHOUSE

The pilot house provides excellent visibility. Aft of the full-sized Admiral Stidd helm chair there is an elevated L-shaped settee. The settee has superior visibility and a cherry table. There are a number of lockers to conveniently stow binoculars, charts, lifejackets, navigation equipment etc. To port and starboard, there are Dutch doors to access the Portuguese bridge deck.

FLYBRIDGE

The flybridge provides excellent 360 degree visibility and features a fixed stainless steel
super structure, SeaMark marine grade bimini (New 2020), three helm chairs and a settee with
built in storage.

GALLEY

• Sub Zero refrigerator
• Two (2) Sub Zero drawer freezers with ice maker
• Professional VIKING (4) burner propane cooktop and oven
• MIELE dishwasher
• G.E. Monogram trash compactor
• Double undermount stainless steel sink with Grohe hardware and “Waste King” disposal
• Granite counters and raised serving/bar counter overlooking salon
• Custom black granite flooring with stainless steel inlays.
• Slide out spice rack
• Custom overhead cabinet feature for storing stemware, glasses and dishes, with etched inlay glass in doors and backlighting. (Mikasa crystal included.)
• LED lighting
• G.E. Chest freezer – Laundry area

LAUNDRY

• Bosch AXXIS + Washer
• Bosch AXXIS Dryer

ELECTRONICS NAVIGATION

PILOTHOUSE:

• STIDD helm chair mounted on a raised black sol
• Three Furuno NavNet C-Map systems that read three C-Map chips at the same time for broad mapping area
• Furuno Fish Finder
• Two (2) NavNet Black Box systems with control panels for radar/plotter
• Custom Silverstone marine navigation PC running Rosepoint Coastal Exporer (New 2018)
• Airmar transducer (non-paddlewheel speed, depth, temp) with feed to Rosepoint (New 2018)
• Closed circuit camera system
•  AIGEAN WiFi booster (Factory upgraded 2018)
• Siren MTC system which monitors shore power, house batteries, bilge low and high water, position, pilothouse temp. and 3 wireless temperature sensors which currently monitor fridge and freezers (New 2018)
• Forward Looking Infrared (FLIR) that provides 1 nm of nighttime vision no matter how dark
• Automated Fuel Consumption Calculation Display (Flo-Scan)
• Furuno FA150 Class A AIS
• Furuno SC50 Satellite compass
• Ritchie globe compass with nightlight

• Aqua Signal chart table light
• Simrad AP70 autopilot processor/pump systems in pilot house and flybridge (New 2018)
• Simrad FU80 follow up sticks in pilot house and flybridge (New 2018)
• Completely independent/redundant Simrad AP50 autopilot processor/pump system in pilot house
• Simrad AP51 remotes
• KVH TracVision satellite TV system with DirectTV receiver/PVR
• ICOM M602 VHF/DSC VHF radio
• ICOM ICM802 SSB radio with external speaker

• Furuno FI50 wind
• Furuno FI50 rudder
• Furuno FI50 speed, depth and temp
• Furuno GP-37 GPS
• Ocean Signal ARH100/E100G self deploying EPIRB (New 2018)
• Iridium portable cell phone linked to a booster
• Iridium Go system (New 2018) With external antenna
• ACR search light control
• ABT Trac control
• Maxwell windless control
• Bow and stern thruster control
• Non reflective black headliners (New 2018)
• Samsung flat screen TV overhead

FLYBRIDGE:

• Furuno NavNet LCD display monitor
• ABT Trac control
• ICOM M604 VHF/DSC VHF radio (Rebuilt 2018)
• Simrad AP70 second station control (New 2018)
• Simrad FU80 follow up stick (New 2018)
• Maxwell windless control
• Furuno FI50 display
• Bow and stern thruster control
• ACR controller
• Ritchie compass
• Engine control

ENTERTAINMENT

• SONOS surround system and sub in salon, Play 3 in pilothouse, SONOS 1 in master, SONOS Amp in cockpit/flybridge, SONOS Boost extender. Supports many online services such as Tunein, Apple Music, Pandora, Amazon etc.
• No wiring required if additional SONOS products are installed (New 2019)

MECHANICAL

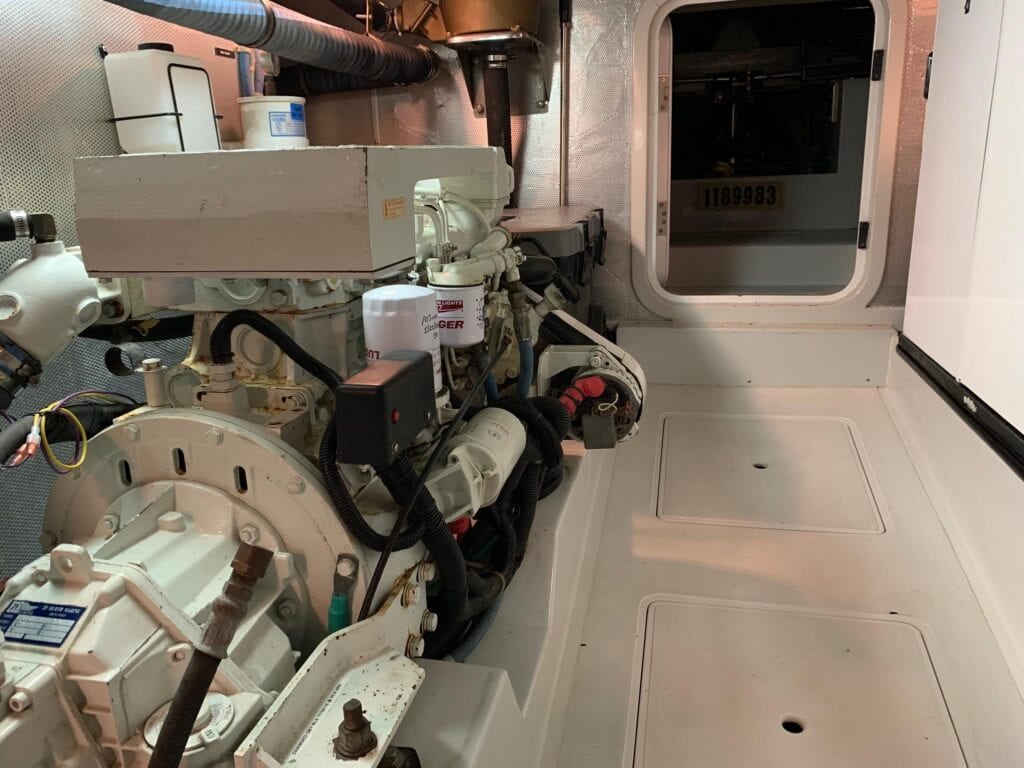

• John Deere 6081 dry stack keel cooled main engine – 5983 hrs (10/04/2020)
• ZF Hurth hydraulic transmission, 4:1 ratio
• Lugger L984D wing engine with ZF ZF631V 2.48:1 transmission and Gori folding propeller –104 hrs (10/04/2020)
• ZF MMC electronic controls for main engine
• Morse controls for wing engine
• ABT TRAC Digital model 250 active fin stabilizers with 9 sq/ft fins and updated touch screens
• Side Power bow and stern thrusters
• Cruiseair reverse cycle air conditioning system with a total of 104,000 BTU’s
• New Sea-Fire FE-241 Fire system in engine room and lazzarette
• 120 gal black water tank with Sealand discharge pump and Sealand Tankwatch 4 level monitor system. All black water systems rebuilt by Yacht Tech
• Manual Whale-Henderson black water discharge pump
  110 gal grey water tank with Sealand discharge pump and Sealand Tankwatch 4 level monitor system
• Manual Whale-Henderson grey water discharge pump
• Village Marine 600 GPD water maker with remote in pilothouse (rebuilt 2019)
• UV filter system for ALL domestic water
• Headhunter M5-115 Mach 5 fresh water pump with Groco accumulator and WEMA tank level indicator
• Hot water heater
• Dual Racor fuel filters with vacuum gauge for main engine
• Racor fuel filters for wing engine and generator
• Fuel transfer and polishing system with Racor filter
• Oil change system – Main, transmission, wing, and both generators
• Whale Gulper bilge pump (New 2020)
• Bronze Edson manual bilge pump (New 2018)
• Rule 3700 High water automatic bilge pump with alarm
• Dayton engine room blowers
• Hynautic hydraulic steering including override for manual tiller steering
• Backup hydraulic autopilot steering pump
• Very extensive inventory of spare parts and accessories

ELECTRICAL

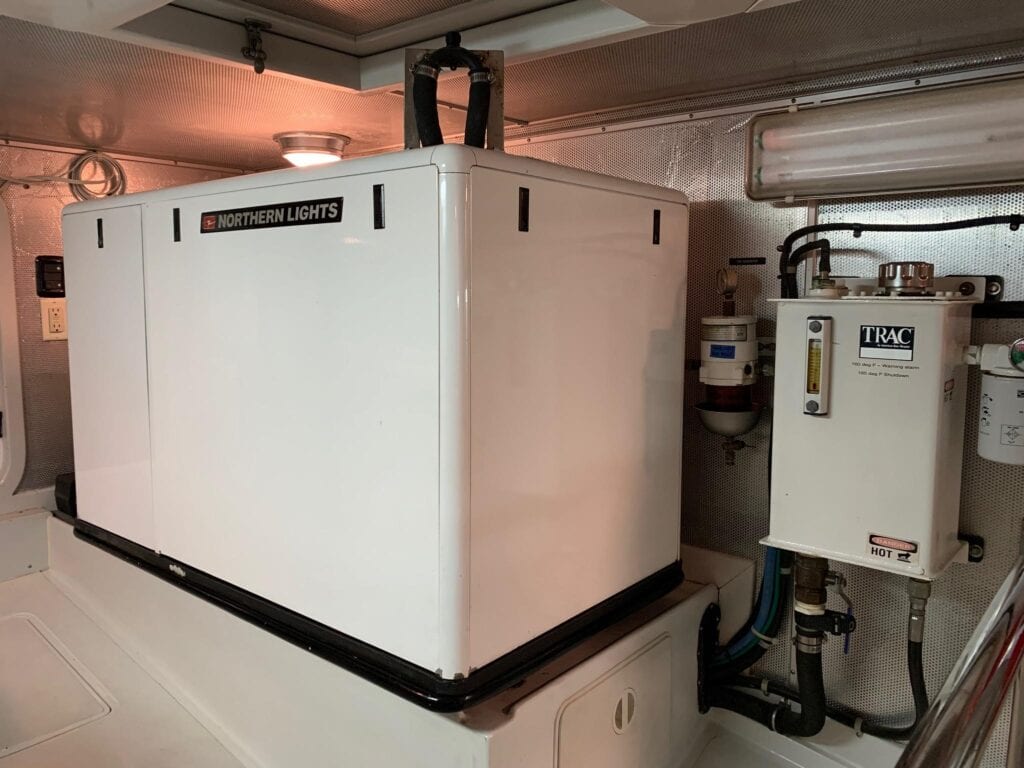

• Northern Lights 20 Kw generator – 3837 hrs (10-04-2020)
• Northern Lights 8 Kw generator – 4920 hrs (10-04-2020)
• Leece Neville 175 amp alternator on main engine for charging house batteries
• 75 amp alternator on main engine for charging engine start batteries
• 40 amp alternator on wing engine for charging wing and generator start batteries
• Twelve (12) 24VDC 8D 255 amp-hour Lifeline AGM house batteries (New 2019)
• Two (2) Lifeline 12VDC 4D main engine start batteries (New 2019)
• Two (2) Lifeline 12VDC Group 31 105 amp-hour generator/wing engine start batteries (New 2019
• Two (2) Xantrex Trace SW4024 4Kw pure sine wave inverter/charger with inverter bypass.
  (#2 inverter rebuilt by Yacht Tech in 2019)
• Xantrex battery monitor
• Ships service 120/240VAC 12 KVA isolation transformer
• ASEA power converter with facility to plug into any power source in USA, Europe, Asia, & Australia. Can be used to reduce risk of using sub-optimal (“dirty”) marina/shore power.
• ASEA control touch screen monitor in pilot house

DECK & HULL

• 13′ CARIBE hard bottom tender with 50 HP Yamaha 4 stroke outboard with full cover
• Inflatable 9’ Achilles “roll up” beach dinghy (as is) with 4 HP Yamaha outboard
• Custom fit bow cushions that convert the foredeck into a sundeck
• Stainless Steel Aritex 1500 lb fully hydraulic davit
• Fixed stainless steel soft top bimini with (NEW 10/2020) Stamoid cover
• ACR remote control spotlight
• LED deck lighting
• Three (3) Todd deluxe helm and companion seat
• Flybridge seating and table
• Starboard wing and aft control stations
• Nordhavn extended swim platform with stainless staple rails and swim ladder
• Retractable Fly Screen (Phantom Screens) on all doors
• Maxwell VWC 3500 windlass
• 70 kg. Rocna anchor with 400′ of chain and spare Fortress anchor
• Spurs line cutter on main shaft
• Nordhavn flopper stopper at anchor stabilization
• Stairs to flybridge from aft deck with snap on cover
• Dickenson Sea-B-Que BBQ grill in cockpit (New 2018)
• Dual trumpet horn
• Windshield wipers and washers
• Hot and cold cockpit shower
• Fresh water spigots on foredeck and cockpit
• Fresh water sink with hot and cold water in cockpit.
• Fishing rod holders and cleaning tray
• Dockside dual filter and water softening system
• Hobie Mirage Oasis tandem pedal kayak with MirageDrive, turbo fin, detachable amas, sail system and furler mounted on port rail (New 2019)
• Brownie Third Lung Hookah system (gasoline powered) with three dive sets
• 2 Dahon Mariner folding bikes with Bionx electric drives in carrier bags (As Is)
• Sunshades for pilothouse windows

Safety

• “Sea Safe” 6 person life raft with EPIRB (New2018)
• Rail mounted Lifesling with 5:1 hoisting block and tackle (New 2018)
• 6 x adult inflatable life vests
• 2 x inflatable waist pouches for dinghy safety
• 2 x personal life jacket EPIRBS (new 2019)
• 3 x EPIRBS (ditch bag, boat deck, life raft)

MAJOR ADDITIONS and MAINENANCE/UPGRADES SUMMARY

Electronics

(2018)

• Installed 2 x new Simrad AP 70 Autopilot Systems and control sticks in P/H and F/B
• Installed new nav station with custom Silverstone marine computer
• Upgraded Siren monitoring system to MTC including wireless transmitters
• Installed new Airmar tri-function transducer for Rosepoint feed
• Installed rebuilt ICOM M-604 VHF
• Installed new NMEA 2000 converter for Rosepoint feed
• Installed new Samsung 46” 4K TV installed in lift system with Apple TV
• Added Ocean Signal ARH100/E100G self deploying EPIRB on Boat Deck

(2019)

• Installed Iridium GO in pilothouse
• Replaced home theater and sound system with SONOS in Salon, MSR, P/H, Cockpit, F/B

Boat Systems

(2018)

• Replaced cutlass bearing
• Replaced 25 headliners
• Replaced both generator circulation pumps and bench test exchangers
• Replaced stabilizer seals
• Upgraded ensuite head internals to Raritan Vortex system
• Replaced starboard main sea strainer to sea chest
• Removed, recondition and reinstall main engine after cooler
• Replaced engine mounts on both generators
• Upgraded all pilot house headliners to black for better night vision
• Overhauled flybridge steering system pump
• Replaced bronze Edson manual bilge pump
• Added two cabin grab rails and install new galley safety line to utility room stairs
• Added SeaFire safety pull to engine room
• Replaced Sub Zero fan motor

(2019)

• Replaced both generators sound shields with new foam and foil system
• Overhauled watermaker
• Replaced all batteries
• Replaced engine mounts on main engine
• Replace one Xantrax inverter with rebuilt unit
• Adjust valves on both generators and main engine
• Stripped and refinished stern rail with 11 coats of Epifanes varnish and Permanon

(2020)

• Replaced bilge pump and switch with Gulper and mounted switch on custom removable bar
• Performed sea chest overhaul
• Replaced main and wing engine dripless seals
• Installed new bimini and stern rail cover
• Compounded entire hull and superstructure and finished with Permanon Yacht treatment

Other Improvements and Inclusions

(2018)

• Replaced life raft with new 6 person Sea Safe raft and EPIRB
• Added 2 x lifejacket personal EPIRBS
• Added new Rescue Me EPIRB 1 to ditch bag

(2019)

• Added reconditioned Brownie gas powered Third Lung Hookah system
• Added Hobie Oasis tandem Mirage Drive Kayak with furling sail, turbo fin, and port mounts
• 2 x Dahon Mariner folding electric bikes with bags included (as is)
• Wide assortment of tools are included

EXCLUSIONS

Owners personal items.
