(2016) Nordhavn 63 – Sea Chance

• Three staterooms, three head and three shower configuration (Steam shower in master)
• Cherry interior – flat panels with no contrasting wood
• Cherry and spruce floors throughout
• Cherry panels on all galley appliances
• Brushed Grohe faucets throughout
• Ultraleather “Skyway” upholstery in salon and pilothouse
• STIDD pilothouse Ultraleather “Skyway” with black powder coated base
• Locker and drawer latches – brushed
• 1 passport safe
• LED lighting throughout
• All exterior doors have new Phantom screens

• 2 X Sub zero refrigerators – 700TR
• 2 X Sub zero freezers – 700 TF
• GE gas cooktop – PGP953SETSS
• Overhead hatch above the stove
• GE electric oven – PK7000SFSS
• GE convection microwave – PVM1790SRSS
• GE trash compactor – 15″ – ZCGS150RSS
• GE dishwasher 18″ – GSM1800NBB – with Cherry panel face
• Galley sink – Kindred QDCU2031R/8
• Countertop – granite
• Soap dispenser on galley counter – brushed (Grohe)
• Slide out spice rack
• Seagull IV X-6 drinking water purifier and tap in galley

• Queen-size mattress
• Live aboard storage space
• The master head is aft in the cabin and has a shower stall with added steam shower, granite topped vanity, Tecma fresh water head and custom tile back-splash.
• Hanging lockers and ample drawer space
• Starboard side beveled wall mirror framed in cherry
• Night stands fore and aft of the head of the bed
• Flat screen TV is mounted on the wall adjacent to the foot of the queen bed
• Two large rectangular opening port lights in the alcove above the head of the bed
• Large hatch overhead for light and ventilation

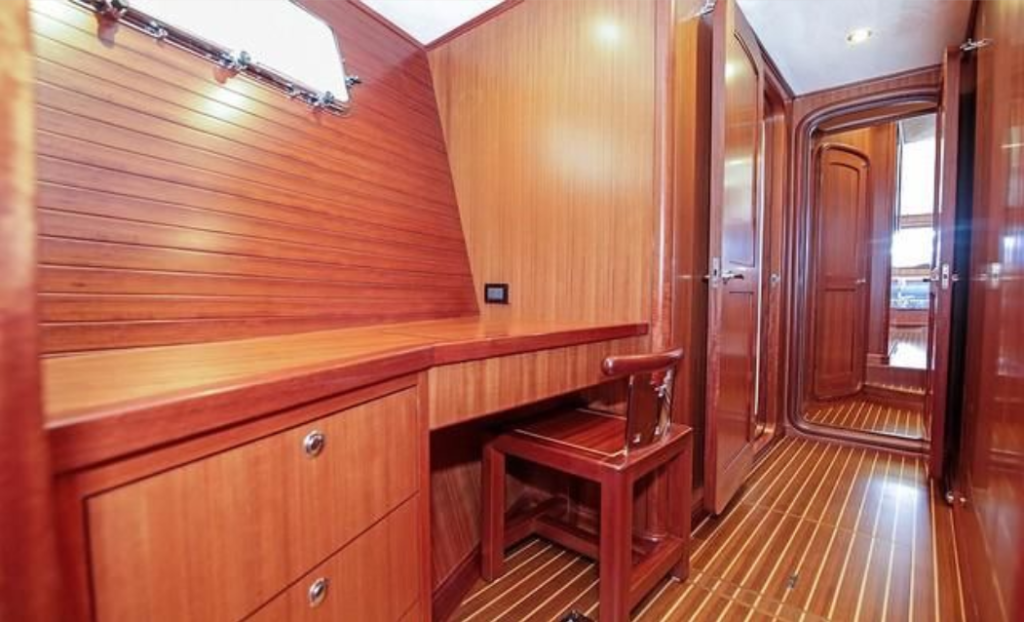

• The forward stateroom features a centerline bed
• Ample storage space in multiple drawers and lockers
• Five opening portlights and three deck hatches
• Working desk area
• En-suite head with vanity and walk in shower

• Starboard of the galley are steps that lead to the crew/utility room. This room is equipped with:
• Bosch dryer – WTV 76100US
• Bosch washer – WAS 24460US
• U-Line freezer
• 4′ x 2′ SS plate under cushion to use as work bench
• The crew is equipped with a fixed berth and one pipe berth for additional sleeping space
• A granite topped vanity with sink is also installed
• Engine room access

• John Deere 6090AFM75 (2650 hours 4/2021)
• Main engine is configured with dry stack exhaust and a Fernstrum keel cooler, making it an exceptionally reliable installation without a raw water cooling pump and associated rubber impeller
• ZF ZFW325 3.958:1 reduction gear
• 3″ Aquamet 22 propeller shaft
• 5-blade bronze propeller
• Dripless PSS shaft seal on main engine shaft
• Morse controls in pilothouse, and starboard wing station

• John Deere 4045DFM70 HE 24V Diesel “Wing Engine” – 80 hp with ZF 631V 2.477:1 V-Drive transmission – Wing controls to be Morse cable – include Gori propeller with Aquamet 22 propeller shaft  (109 hours 04/2021)
• Air-conditioning system – CRUISAIR remote compressor system with SMX controls (60hz). Salon and galley – 48 BTU compressor / 2×24 BTU air handlers. Pilothouse and pilothouse cabin – (1) 30 BTU compressor and (1) 10 BTU compressor / 1×30 BTU and 1×10 BTU air handlers. Master stateroom – 24 BTU compressor / 1×16 BTU and 1×10 BTU air handlers. Guest stateroom – 12 BTU compressor / 1×12 BTU air handler. Crew/laundry cabin – 10 BTU compressor / 1×10 BTU air handler. Reverse cycle for heating on all. Includes aux heat strips
• Thruster # 300 TRAC Digital active fin stabilizers with digital controls at Wheelhouse (9 sq ft fins)
• TRACStar (Stabilization At Rest) significantly reduces vessel roll while anchored, on a mooring, or while drifting.
• SEAFIRE FD1300m fire system installed in engine room with relay box to shut down engine, generator and blowers – pull cables in utility room SEAFIRE FD1050 fire system in lazarette – pull cable in salon
• PAE designed oil change system – hard plumbed into the main engine, generator and wing engine
• Village Marine “Squirt” 600 gallon a day 240V water maker STW600 touchscreen. With Auto back flush
• Whirlpool WHKF-DWHBB whole house water filtration system
• Hydraulic anchor wash system
• 2 x Mach 5 Headhunter fresh water pump systems

• AC electrical is 240-volts 60hz and 120-volts 60hz. 50-amp 125/250-volt shore power cord
• Shorepower inlets on forward face of Portuguese Bridge
• Glendinning shore power cord 85′ system at stern
• Smartplug shore power inlets
• Charles 14-MT5572-0 iso boost 50 automatic isolation 12kva
• 2 stacked Outback inverters/chargers
• Mastervolt Charge-master wide input battery charger
• Generators:
• 9kW 240-volt 60hz Northern lights secondary generator installed in a sound shield in the lazarette (3298 hours 04/2021)
• 20kW 240-volt 60hz Northern Lights primary generator installed in sound shield in the engine room. Includes Gen-sep exhaust system for very quiet exhaust (1324 hours 04/2021)
• Batteries:
• 8 ea. 8D 255 amp-hr house batteries divided into four 24-volt banks
• 2 ea. 4D batteries in series for 24-volt main engine starting
• 1 ea. Group 31 12-volt battery for pilothouse 12-volt electronics buss
• 2 ea. Group 31 batteries in series for 24-volt, shared generator start batteries
• 2 ea. 4D batteries in series for wing engine starting
• 2 ea. 8D batteries for stern thruster operation
• 2 ea. 8D batteries for bow thruster operation
• Thruster battery charging is controlled by an automatic charge relay on each bank, which ties them to the house bank when a charge source is sensed, and isolates them from the house bank when they are in use, preventing a voltage drop to the house bank

• Glendinning shore power cord (85 ft) system at stern
• Spurs line cutter on main shaft
• Swim step extension
• Steelhead davit
• Ribcraft 4.8T with 60HP Yamaha four stroke engine
• Dinghy has depth sounder, chart plotter, and VHF radio
• Custom console to incorporate a “very nice” electric BBQ grill.
• Emergency Fortress 69 lb anchor in chain locker
• Main anchor has 400’ of ½” chain
• Bow pulpit was custom widened with tread plates
• Rode package for Fortress – 250′ 3/4″ three strand line with 30′ 1/2″ HT chain, Stored in chain locker on shelf
• New wired (and wireless)  ACR RCL-95 spot light
• Aft deck flood lights with a second switch in pilothouse
• Cockpit hatch access to lazarette, and engine room
• Handrails along port, forward, and starboard sides of pilothouse
• Well-balanced pantograph hinge on door from Portuguese bridge to foredeck
• Two large storage lockers in Portuguese bridge
• Large foredeck for tender storage. Enough space for two tenders
• Ground tackle handling area has low bulwark for debris containment, and drains to the waterline
• 30″ tall safety rails around foredeck
• Freeman, commercial grade cast aluminum anchor locker hatch
• Dual bronze anchor rollers
• Transom boarding door
• L-shaped handrails on transom
• 30 gallon gasoline tank with 24 VDC pump for tender fuel
• Two sets of 30″ ss racks on pilothouse deck for kayak storage
• 2x LED underwater lights

Owner’s personal effects, tools, and artwork.
