2016 Nordhavn 60

YACHT TECH is proud to bring BOOKE END to the market!

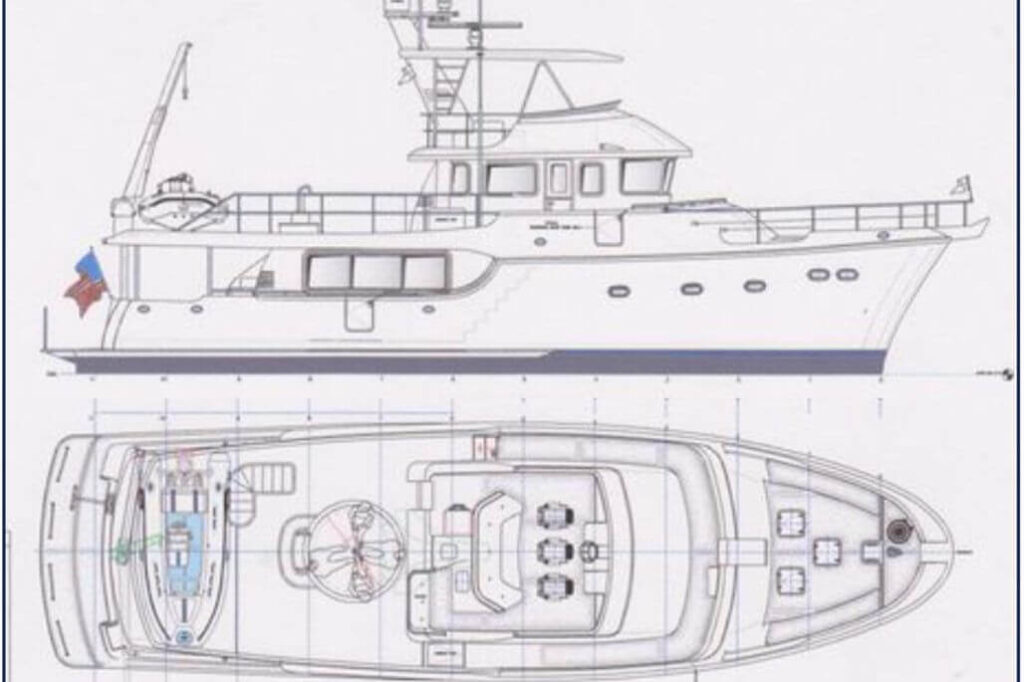

This Nordhavn 60 is unique with her extended boat deck and salon. Her cockpit was extended by 4’ and the boat deck by 2’ bringing the boat deck in line with the cockpit and allowing for a 2’ extension of the salon (moving the bulkhead aft). This design provides a very well balanced and livable layout … it even allowed for a Jacuzzi on the upper deck!

BOOKE END is spec’d very well with twin John Deere mains, twin Northern Lights generators, twin Village Marine water-makers, etc. … redundancy galore!

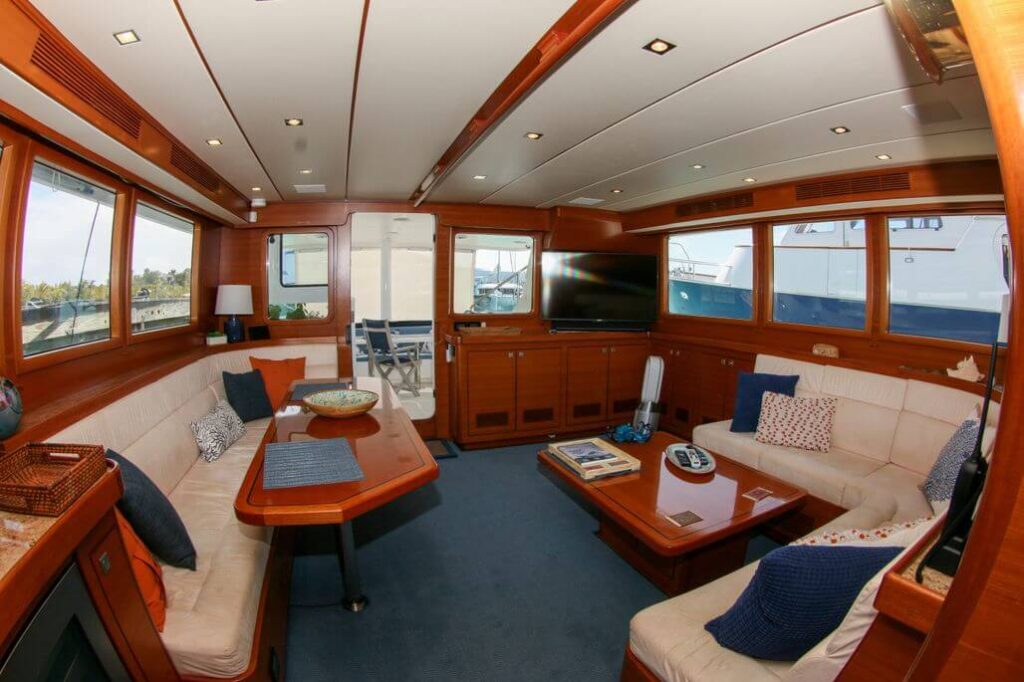

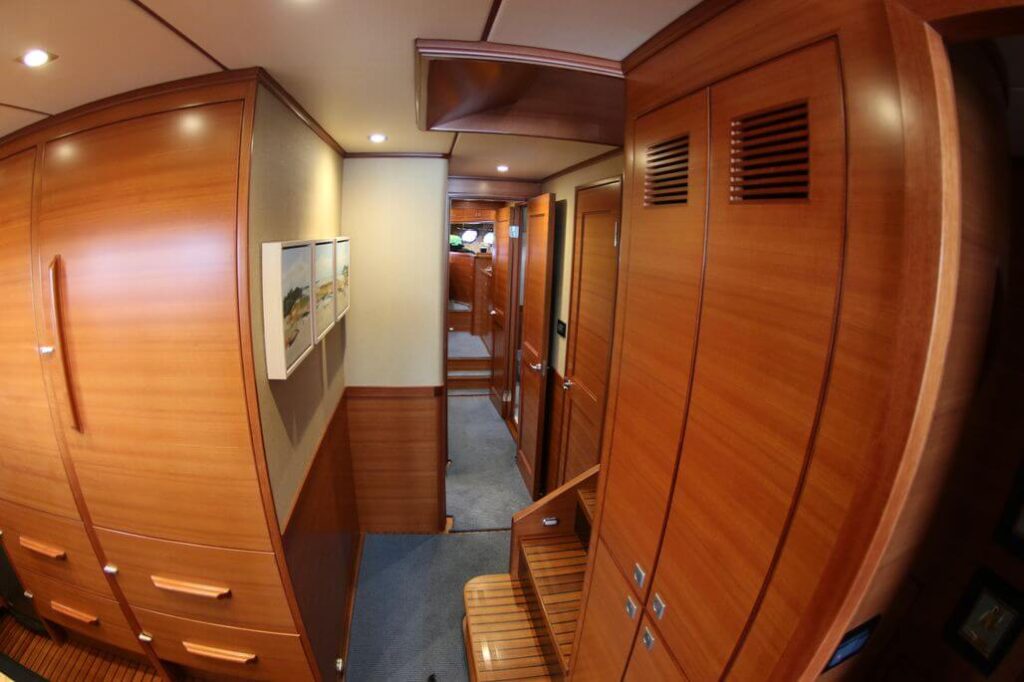

BOOKE END has a gorgeous interior with a modern look. Horizontal grained cherry, cherry and ebony sole and a spiral stair to the pilothouse set her apart from the 55’s and 60’s before her. Her midship primary stateroom, VIP stateroom forward and pilothouse berth (each with a full head) is a very desirable configuration. From the moment you step aboard, you can feel that this boat is special.

Make an appointment today to see this beautiful N60!

ALL OF OUR VESSELS ARE AVAILABLE FOR CO-BROKERAGE AT A 50/50 SPLIT To find out more about this vessel or schedule an appointment to see her please contact a member of our brokerage team …

“We know Nordhavns inside and out”
JAMES KNIGHT: (561) 776-5848, james@nordhavnonly.com
JAY FLAHERTY: (901) 896-5226, jay@nordhvnonly.com
MARK WELSH: (610) 405-9229, mark@nordhavnonly.com

Other Details

Notable Upgrades

• New bottom paint, prop speed, shafts, props and spur cutters send out for overhaul/repair; Thurster, Stabilizers and PSS shaft seals replaced; new motor mounts, Cutlass bearings replaced. Thru hull speed sensor replaced – 2023 (3Q)
• TZ touch 2 and new primary computer Replaced – 2023
• Underwater lights replaced – 2023
• Tender Cushions replaced – 2023
• Maretron MBB300C black box controller replaced and N2K view remote network access added – 2022
• Crane overhauled and hoses replaced – 2022
• Engine intake fans replaced – 2022
• New salon, bedrooms and pilothouse carpet – 2022
• Cockpit settee recovered – 2022
• Primary stateroom mattress replaced with custom memory foam $7K – 2022
• Outback Mate 3 controller – 2022
• Lorex 4K video Network controller – 2022
• Life raft redone – 2022
• Pilot house monitors screens replaced – 2020/2022
• Firmware for 4 FI70s reflashed at factory with current software – 2021
• Batteries Replaced – 2021
• KVH sat upgrade to V3-HTS – 2021
• Backup electric Hydraulic oil cooler pump added and plumbed – 2020
• 5x HD PTZ cameras added – 2020
• New flybridge screen – 2020
• New tender new Venture 14 w/ Yamaha F70 – 2020
• Large dockbox – 2019
• Caravan Marine BBQ
• Starlink antenna bracket added to stinger
• Spare motherboard for subzero
• Dockmate remote controller

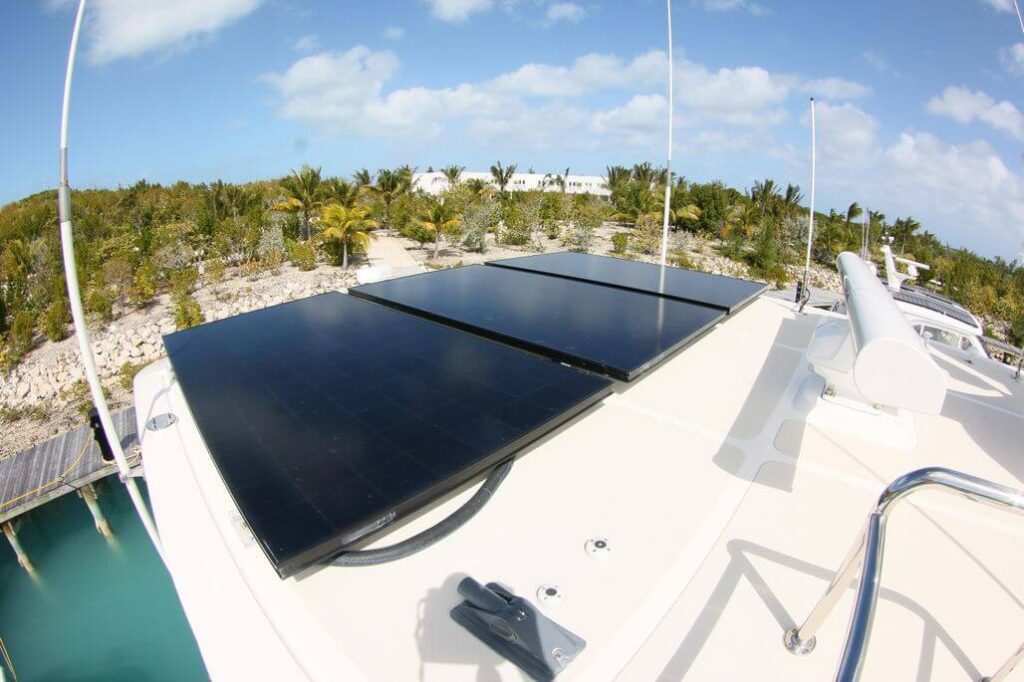

• Solar Panels (1230 watts) with Victron MPPT150 Solar Regulator / W/Bluetooth
• Autostart for 12kw
• Sonos home theater sound system
• 2x new Fusion RA 770 stereos ( flybridge / salon / cockpit / deck )
• List of spares expanded in 2021 to include just about everything, including, ME alternators, spare 190 amp house alternator, regulator, Heat exchanger, 2 raw water pumps, coolant pump, spare exhaust elbow plus most other spares for ME. Spares for the generator water makers are extensive also. Spare Headhunter mach 1 main ware pump. Spare AC raw water pump.

Propulsion

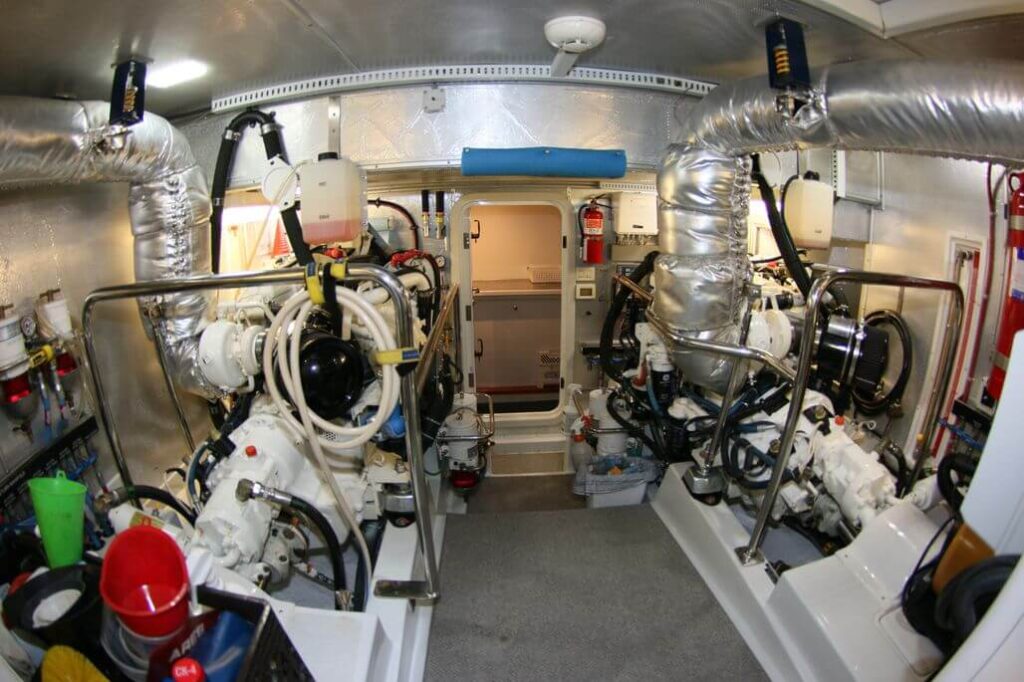

Main Engines

• Twin John Deere 4045 AFM 85, M2 rated (180 hp @ 2,400 rpm) provides superior tracking over single-screw models
• Wet exhaust
• 190 amp alternators with balanced charging controllers (1 per engine)
• Mathers Electronic engine controls at each of the 5 stations (pilothouse, flybridge, starboard wing, port wing and cockpit)
• MurphyPowerview digital function gauges in pilothouse and on flybridge
• Shafts upgraded to Aquamet 22.
• PSS drip-less shaft seals new Oct 2023
• Five bladed props
• Spur line cutters
• New engine mounts 2024

Thrusters

• 25hp ABT hydraulic bow and stern thrusters
• Hydraulic PTO’s on both main engines and primary generator
• Proportional Thruster controls at all 5 stations

Stabilization

• American Bow Thruster #250 Trac Digital active fin stabilizers

General

• Additional forward fuel tank for a total capacity of 2,300 gallons
• Dual Racor fuel filters with vacuum gauges on main engines and generators
• Upgraded fuel transfer pump – Oberdorfer Model # N991-32-C82
• Oil change system hard plumbed to main engines, transmissions and generators

Systems

Dockmate

• Remote Dockmate stystem for Main Engines / Thrusters / Windlass and Horn

Air Conditioning

• DOMETIC Chilled Water Air conditioning
• 2 x Chillers for redundancy
• Reverse cycle capability for heating in all cabins.

Hydraulics

• Hydraulic pumps on both main engines & primary generator powering
• ABT Stabilization (New stabilizer seals 2023)
• ABT Bow and stern thrusters (New thruster seals 2023)
• Anchor windlass
• Anchor wash
• Emergency bilge pump

Fire Suppression

• SEAFIRE FD 1300M serving engine room with relay box to shut down engine, generators and blowers as well as manual discharge cable (in utility room)
• SEAFIRE FD 1050 serving lazarette with relay box to shut down blowers as well as manual discharge cable (in salon)

Navigation Electronics

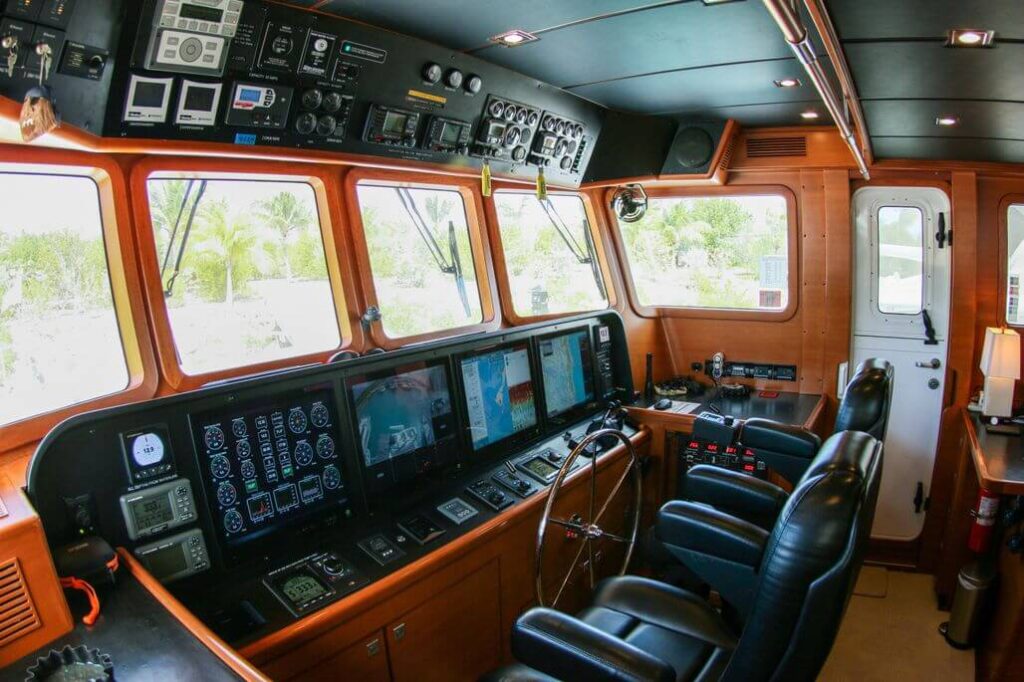

Computers & Displays

• 4 Hatteland 15″ series X displays (pilothouse)
• Seatronx 15″ display (Flybridge / with Furuno spare onboard)
• Lenovo backup Computer running TimeZero Pro4
• New Silverstone Primary navigation computer running TimeZero Pro4 software
• New TZ Touch Black Box with 2 x processors (Pilothouse and Flybridge)

Autopilots

• 2 Simrad AP 70 IMO Solenoid autopilots
• 2 Acusteer HPU212-200 steering pumps
• 3 FU 80 Follow-UP levers (pilothouse console, pilothouse Stidd, flybridge)

AIS & Radar

• Furuno FA 150 (Class A) AIS
• Furuno 12KW Radar with 6′ open array antenna
• Furuno 6KW Radar with 4′ open array antenna

General

• Furuno GP 33 GPS / WAAS Differential GPS receiver
• SC 50 satellite compass
• Furuno Navnet Hub 101
• 4 x Furuno FI70 Multi Function Displays (2xPH / 2xFB)
• 2 ICOM M604 VHF radios with Command Mikes for the Flybridge
• KVH TracPhone V3
• Furuno Network Sounder/Fishfinder DFF1
• Flir M-625XP 640X680 pixel thermal camera (with second station controller)
• KVH HD7 Sat TV system (Viewable in Pilothouse / Master / VIP and Salon with DVR)
• WX -WORX on water WR-10
• Extensive Maretron monitoring system with remote monitoring
• ACR search light
• 2 Maxwell Chain counters (pilothouse & flybridge)
• 2 Watermaker controls with remote touch screen displays in Pilothouse

Electrical

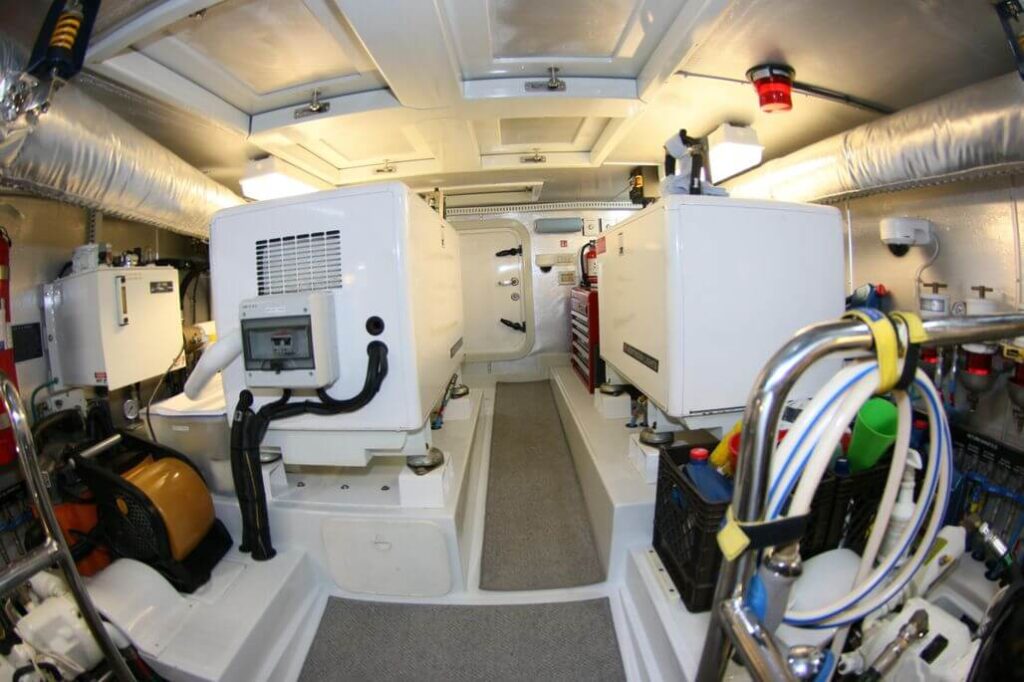

Generator #1

• Northern Lights 20kW
• Sound shield
• Upgraded stainless steel exhaust elbow
• Hydraulic PTO to insure full power for thrusters while docking

Generator #2

• Northern Lights 12kW with Northern Lights Auto Start feature and Automatic Transfer Switching
• Sound shield
• Upgraded stainless steel exhaust elbow

Chargers/Inverters

• Victron Skylla TG 24/100 battery charger with remote control and current limiting in Pilothouse.
• 2 x Outback 3.5kW inverters (Model #VFX 3524) for a total of 7kW with Mate III controller (Tied to Generator Autostart)

Batteries

• 10x 8D lifeline house batteries
• 2x 4D start batteries
• Group 31 Lifeline battery for 12V service (in pilothouse)

General

• 50A & 30A shore power connections forward and aft with “Smart Plugs”
• Glendinning cable master
• Olsun Isolation transformers

Plumbing

Fresh Water

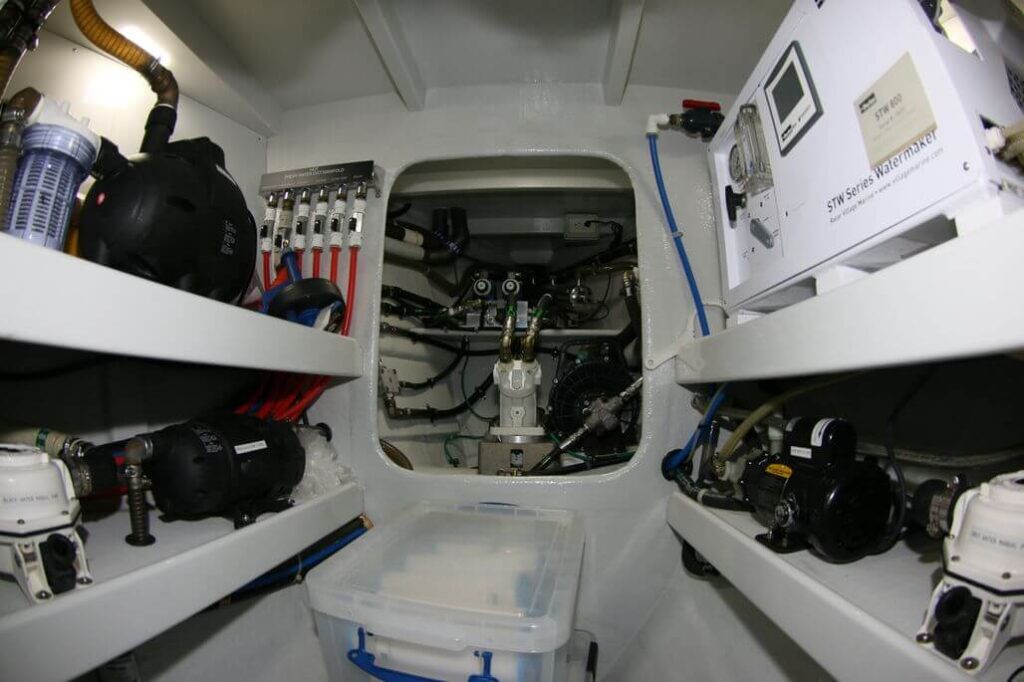

• 2 Village Marine 800gpd water makers (Model STW800) with auto back-flush
• UV sterilizer VMS2
• 40 gallon Torrid Electric water heater with heat exchanger for waste engine heat.
• 24v Back-up fresh water pump

Black Water

• Tecma freshwater toilets
• Upgraded Head Hunter “Great White” odor safe sanitation hoses

Galley

• Granite countertops
• Double sink w/ garbage disposal
• Double Sub-Zero refrigerators ( each with two freezer drawers and individually powered / controlled )
• Miele KM 5753 induction cooktop
• Miele dishwasher
• GE oven
• GE microwave
• GE trash compactor
• Toaster Oven
• “Jura” Fully Automatic Espresso Coffee Maker

Layout

• Primary stateroom (amidship) with great storage and ensuite head
• VIP cabin (forward) with full head
• Captains berth (off pilothouse) with full head and shower

Deck & Hull

Cockpit

• Control station
• Built-in settee with table and chairs
• Australian Marine Caravan Propane BBQ
• Lazarette hatch with electric lift

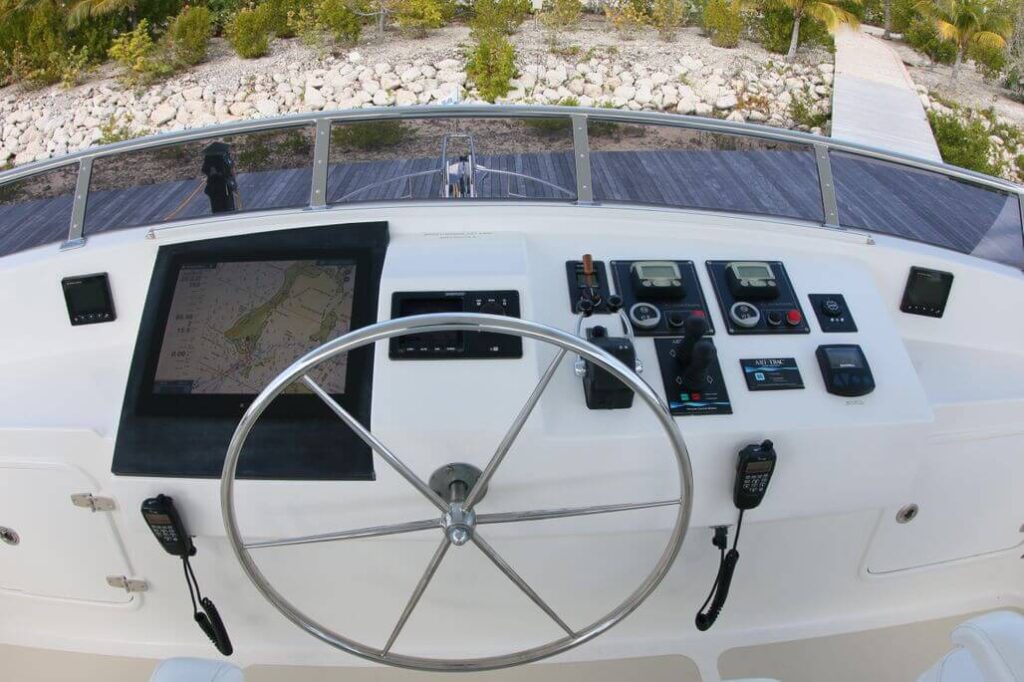

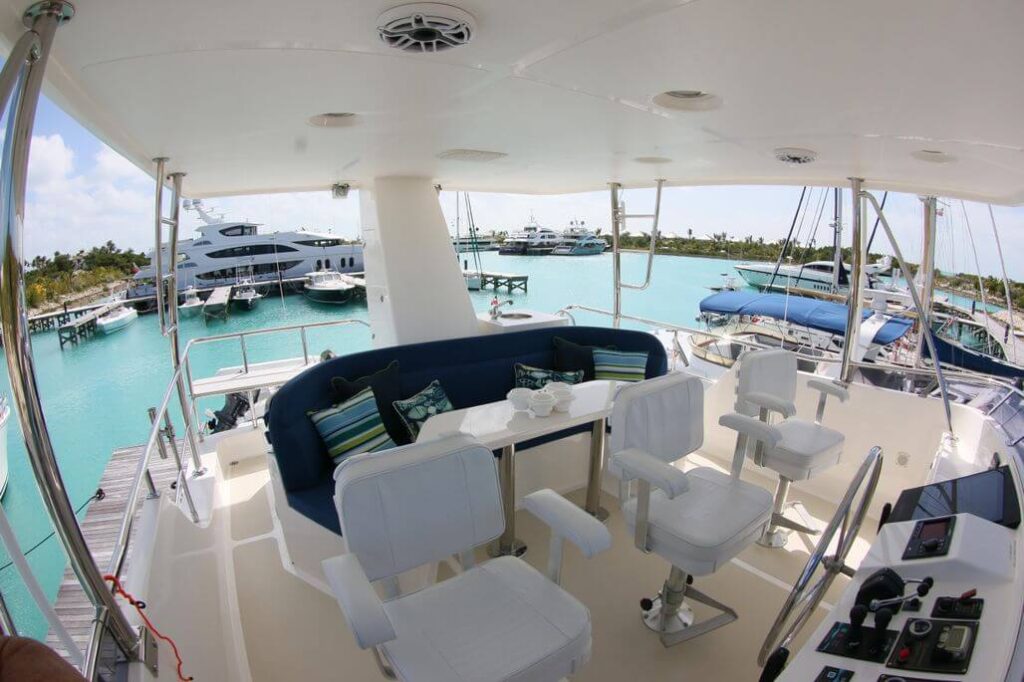

Flybridge

• 3 Todd helm chairs
• Built-in settee with table
• Uline refrigerator with icemaker
• Sink
• Factory installed Fiberglass Hardtop with Solar Panels

Anchoring

• Upgraded Maxwell 4000 hydraulic windlass with Hand Brake
• Polished Stainless Steel Ultra UA-10 220 lb. anchor
• Ultra Flip swivel
• 500′ of chain
• Hydraulic anchor wash-down
• Secondary anchoring system (Fortress Aluminum anchor located in chain locker)

General

• Port wing, starboard wing & cockpit control stations
• Upper starboard boarding door with removable boarding ladder
• Extended swim platform with wave attenuator (eliminates slapping)
• Underwater lights (Blue)
• Bauer dive compressor (in lazarette)
• Air compressor (in lazarette) plumbed to cockpit
• Jacuzzi tub (on upper deck)
• Port & starboard flopper stoppers
• Large Deck Box for starage

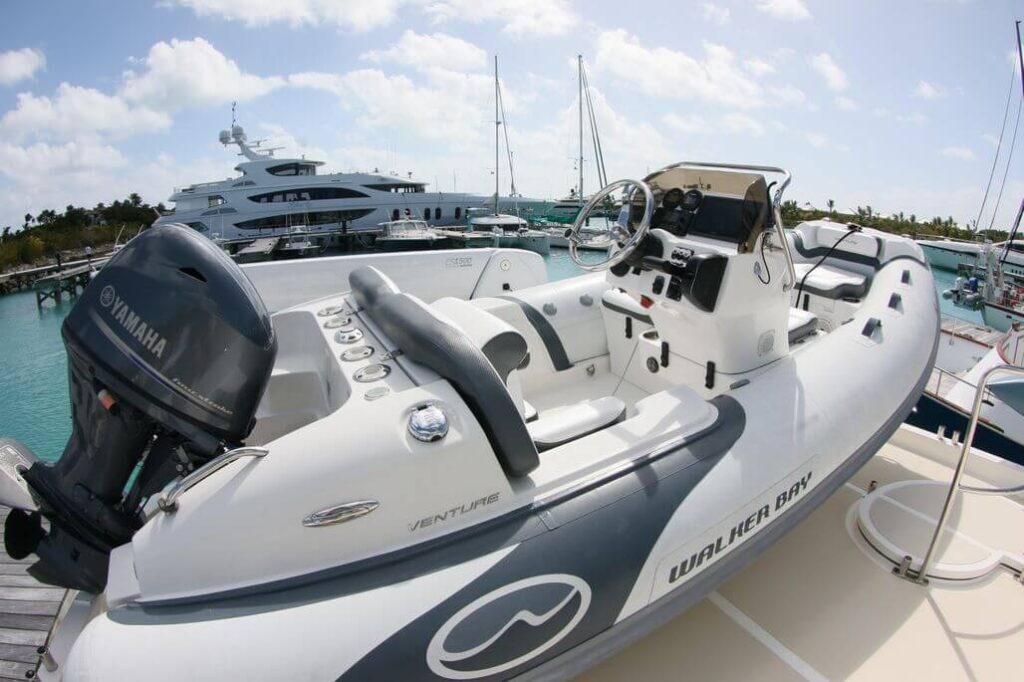

Tender

• 2020 Walker Bay Venture 14 tender
• 70 hp Yamaha
• VHF radio and depth sounder
• Tow line
• Covers
• 30 gal FRP fuel box with nozzle
• Davit allows launching from port, starboard or aft!!
• 2 Person pedal kayak included

Exclusions
Owners Personal Items

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Propulsion

Engine 1

• Engine Make: John Deere
• Engine Model: 4045AFM85 M2
• Engine Year: 2016
• Total Power: 180hp
• Engine Hours: 2100
• Engine Type: Inboard
• Drive Type: Direct Drive
• Fuel Type: Diesel
• Rope Cutter: ✓
• Propeller Type: 5 Blade
• Propeller Material: Bronze

Engine 2

Specifications

Speed & Distance

• Cruising Speed: 8kn
• Max Speed: 9kn
• Range: 3000nm

Dimensions

• Length Overall: 64.42ft
• Beam: 18ft
• Length at Waterline: 57ft

Miscellaneous

• Windlass: Hydraulic Windlass
• Liferaft Capacity: 6
• Electrical Circuit: 240V

Tanks

• Fresh Water Tank: 690 Gal (GRP)
• Fuel Tank: 2383 Gal (GRP)
• Holding Tank: 230 Gal (GRP)

Accommodations

• Double Berths: 3
• Cabins: 3
• Heads: 3
